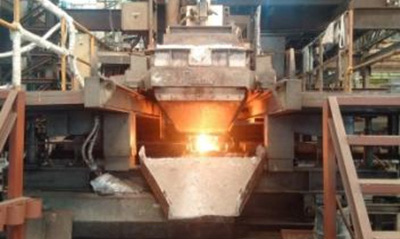

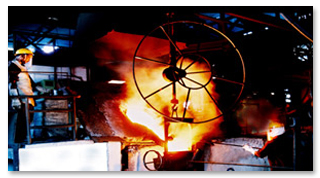

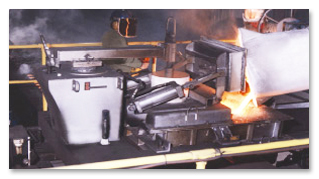

Auto pouring system-Tundish with
VISIPOUR controls

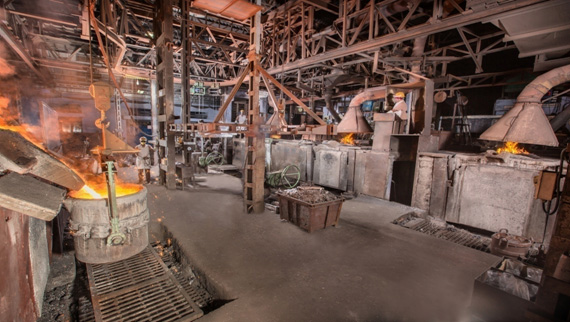

Equipped with three medium frequency induction furnaces, 1.5 Ton 750kw -2 Nos.
and one number 2.0 Ton 1250kw capacity. Also in place Auto pour equipment , 2 ton capacity
with in built control system for pouring moulds from high pressure moulding line
coupled with auto inoculation technique.
Moulding Department :

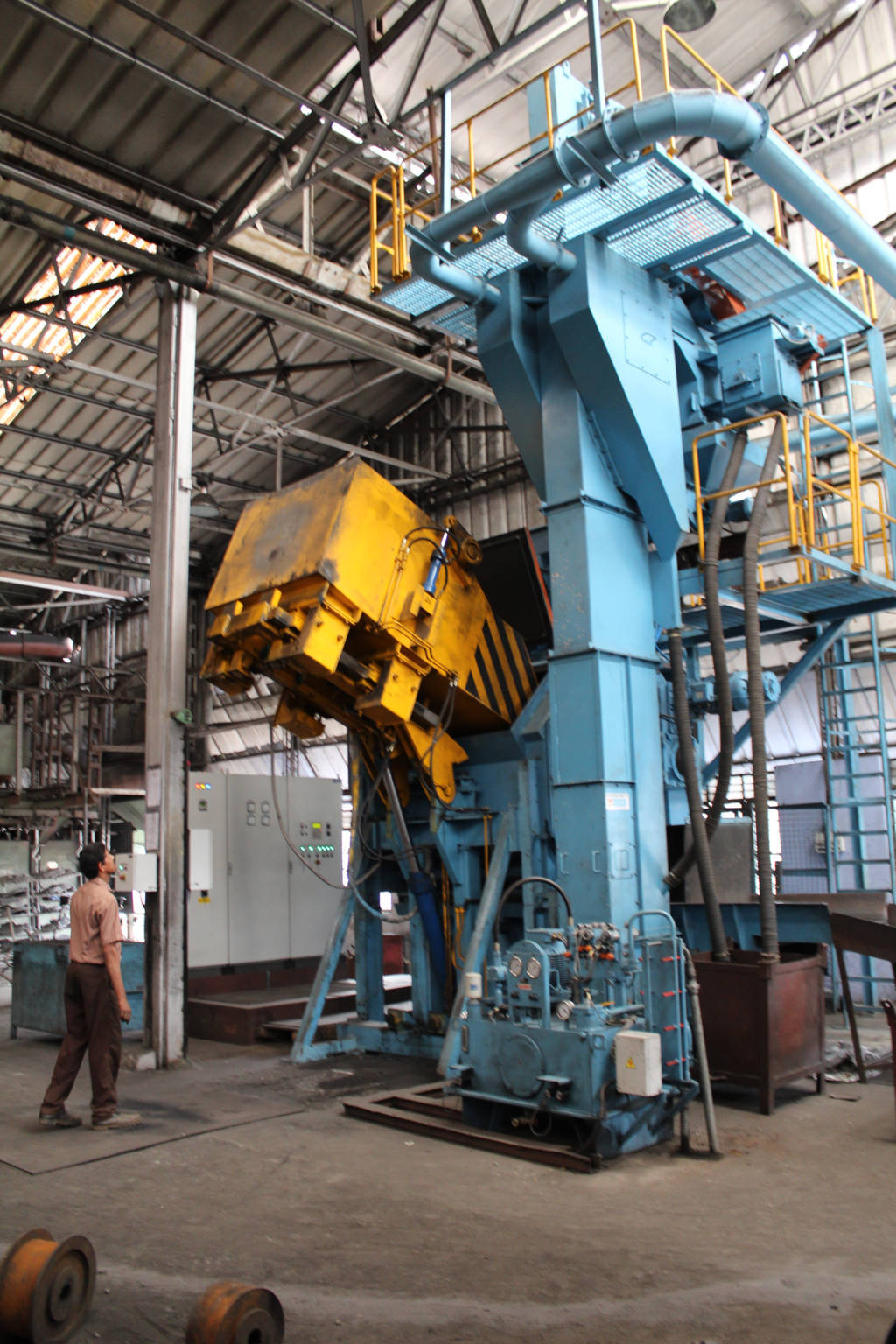

High pressure Molding
line Sinto FCMX – II
Conventional Moulding
Conventional Moulding line with one Pair of ARPA-450
and two pairs of ARPA300 Simultaneous jolt / Squeeze Pin
lift machines. Also, In place, advanced
High pressure Moulding line SINTO FCMX II
version to produce200 Moulds / hour. Also

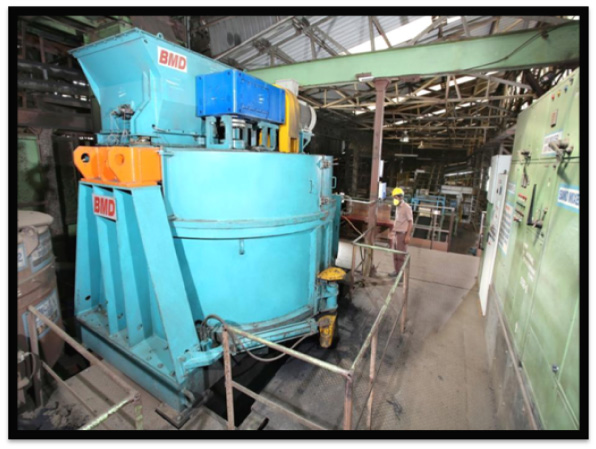

Equipped with modern sand plant
(60tons of sand per hour) fully automated control
system incorporated with fluidized bed cooler
system for return sand.
Range of Mould boxes in the system
520mm x 400mm x 200mm
520mm x 400mm x 120mm
520mm x 520mm x 200mm
520mm x 520mm x 120mm
650mm x 650mm x 200mm
650mm x 650mm x 300mm
610mm x 508mm x 130mm
610mm x 508mm x 200mm

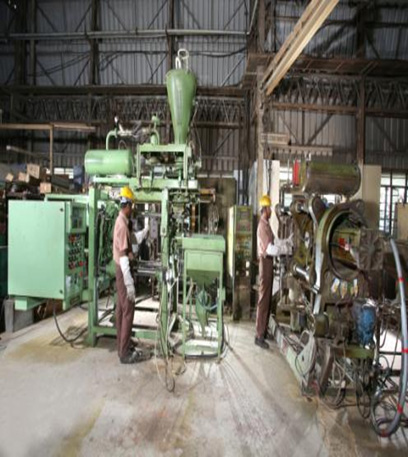

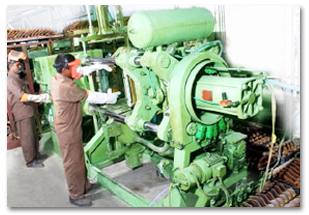

Core shop :
Core Shooter
Equipped with cold box core shooting
machines of 3 liters and 5 liters capacity
and also shell core shooter.
Laboratory :

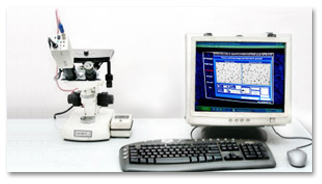

Image Analyser

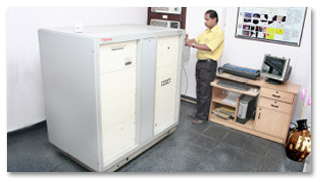

Spectro
Spectro meter to analyse 20 elements
(ARL Thermo electron Corporation Switzerland make)

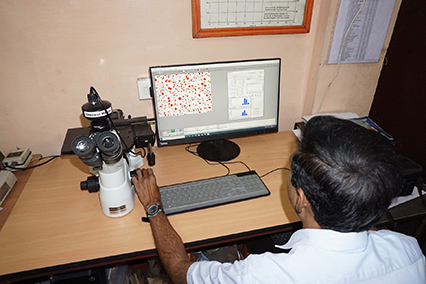

Also equipped with metalographix image analyzer
to precisely estimate the various
micro structural constituents. Also equipped with
mechanical testing laboratory to estimate tensile strength,
hardness and sand laboratory to monitor foundry
sand quality on a continual basis

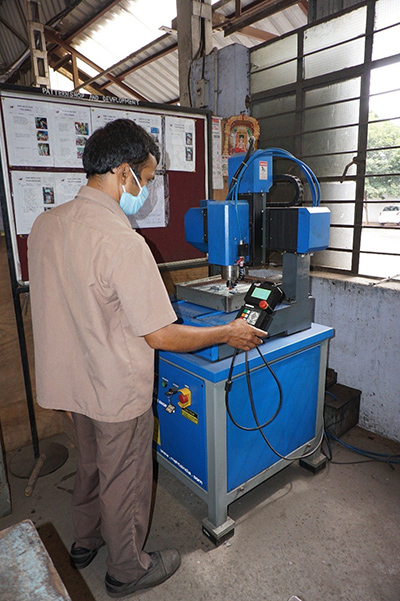

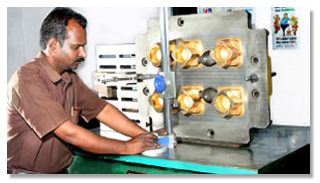

Pattern shop :
Manufacturing, aligning and Mounting
Metallic patterns, to meet close dimensional
tolerance in the castings

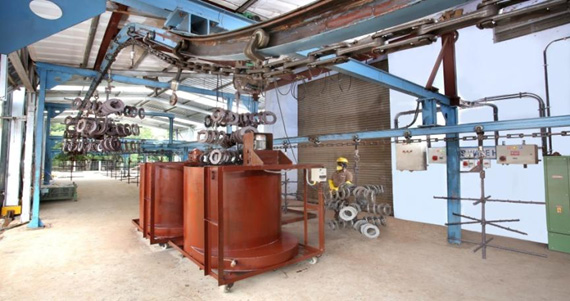

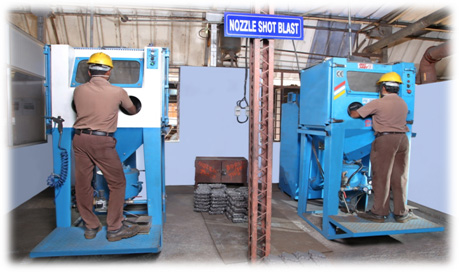

Fettling:

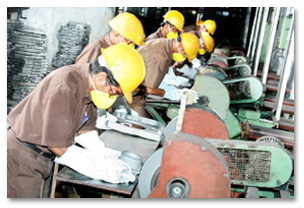

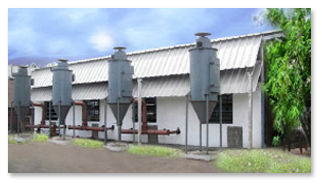

Environmental friendly fettling shop

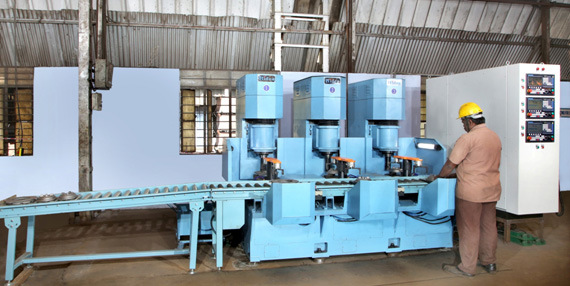

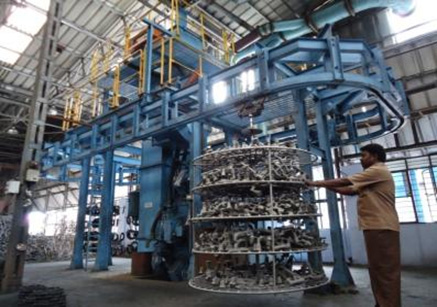

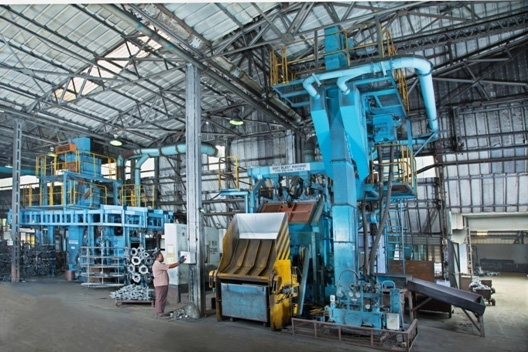

Equipped with shot blasting machines of hanger type and tumblast type, Grinding machines ,
with individual machine dust collection system in built.
